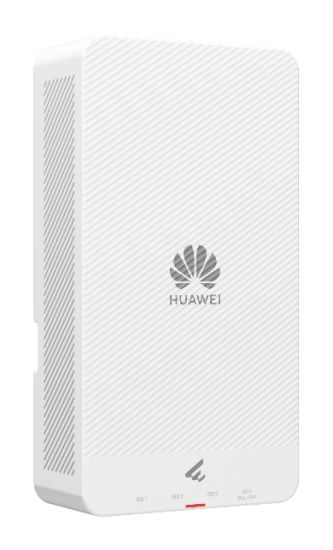

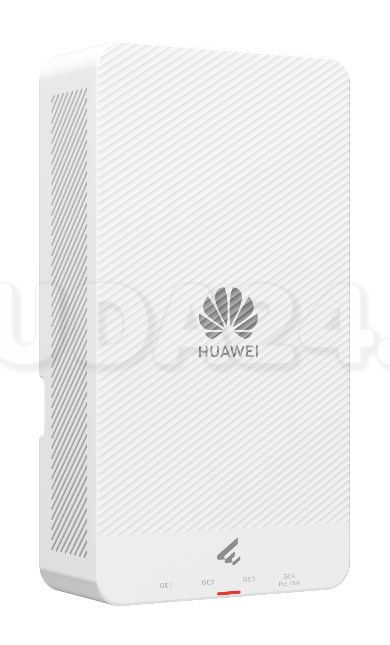

Точка доступа Huawei AP266 Wi-Fi 6 indoor Wall-plate (2.4G/5GHz, 2x2/2x2 MU-MIMO, 1*GE RJ45 PoE+, 4*GE RJ45 (1*PoE OUT))
Артикул:
VST-50087274
Гарантия низкой цены!!!
Найдешь дешевле, вернем разницу...
Бесплатная доставка
От 9,000 тг. для г. Алматы
Курьером по Алматы
Доставка 12.04
Курьером Kazpost
Дата отгрузки со склада в г. Алматы 12.04
Рассрочка / кредит
Приобретайте товары в рассрочку или в кредит
Возврат
Возврат в течении 14 дней
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.) |
| Weight without packaging [kg(lb)] | 0.23 kg (0.51 lb) |
| Weight with packaging [kg(lb)] | 0.42 kg (0.93 lb) |
| Storage | NAND Flash 256 MB |
| Console port | Not supported |
| Maximum power consumption [W] | 9.4 W (excluding PoE out) |
| Maximum heat dissipation [BTU/hour] | 32.07 BTU/hour |
| Power supply mode | PoE |
| Rated input voltage [V] | NA |
| Input voltage range [V] | PoE: 802.3at/af |
| Service port surge protection |
PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms, criterion B |
| PoE | Supported |
| Maximum PoE output power [W] | 15 W |
| Maximum number of physical ports on the entire device | GE (RJ45) x 5, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | Not supported |
| IoT slot | Not supported |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain |
2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain) |
| Maximum transmit power |
2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) |
| Singal radio transmit power [dBm] |
2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 235.46 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | The power supply mode is negotiated to 802.3at, and no function is restricted. |
| 802.3at power supply description | The power supply mode is negotiated to 802.3at, and no function is restricted. |
| 802.3af power supply description | The power supply mode is negotiated to 802.3af, and the PSE out function is unavailable. |
| DC power supply description | Not supported |
-
